I Built a Passive Cooling System Using Only Sunlight and an old radiator fan

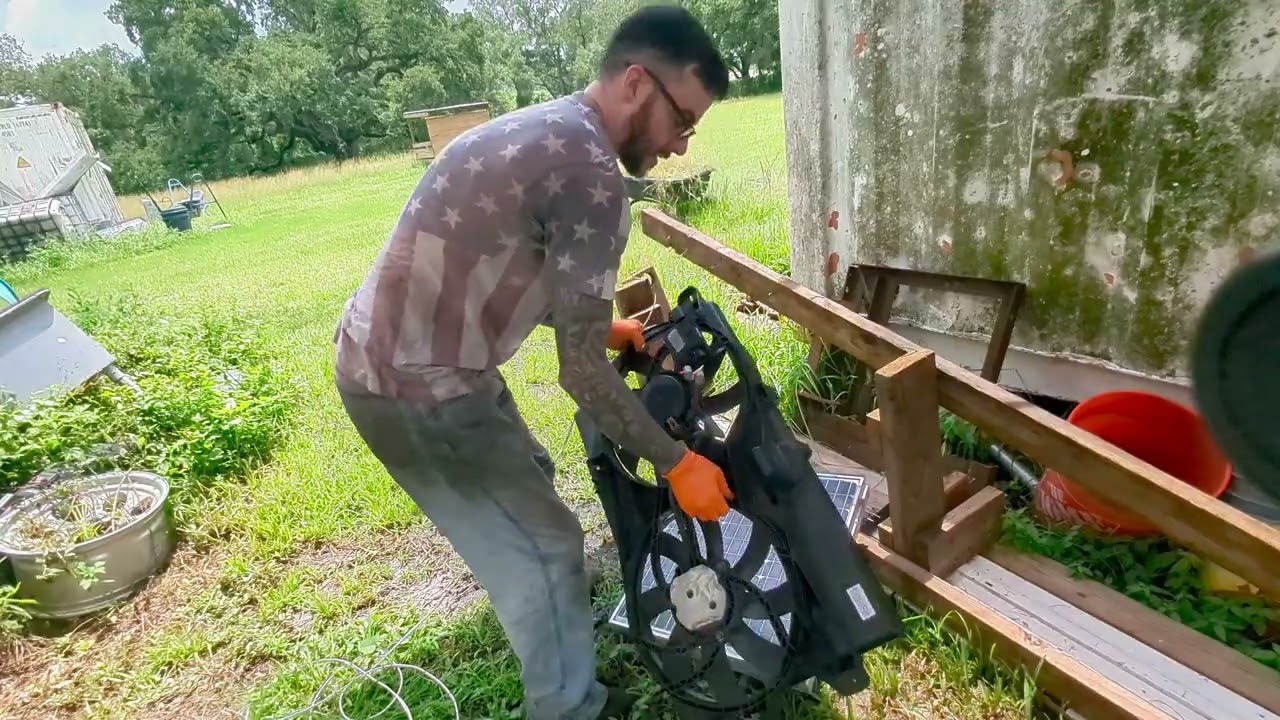

This video demonstrates a DIY passive cooling/ventilation system that uses sunlight to run an old automotive radiator fan, creating an eco-friendly, low-cost way to move air through a garage or outdoor workspace. The build repurposes a used fan, mounts it into a simple plenum or box, and powers it directly from a small solar panel with basic wiring and mounting hardware.
Build Sequence
1. Inspect and test the radiator fan
Remove any debris, check blades and bearings for damage, and bench-test the fan by briefly connecting it to a battery or appropriate power source to confirm it spins and the motor is functional.
2. Select solar panel and match voltage
Choose a solar panel whose nominal voltage and output current are compatible with the fan. If the fan is a 12V unit, pick a 12–18V panel sized to provide adequate current under sun conditions.
3. Design and cut the plenum or mounting plate
Measure the fan opening and cut plywood or sheet metal to make a box, duct, or mounting plate that will channel airflow through the fan. Include mounting points and any necessary support bracing.
4. Mount the fan into the plenum
Bolt the fan to the plenum or mounting plate using appropriate hardware, adding vibration isolators if available. Ensure the fan orientation pulls or pushes air in the desired direction.
5. Install solar panel and wiring
Secure the solar panel in a sun-facing location, run appropriate gauge wire to the fan, and install an inline fuse and a switch if desired. Use proper connectors and seal external connections against moisture.
6. Seal and weatherproof assembly
Use silicone or foam to seal gaps around the plenum and any roof or wall penetrations. Add mesh or grille if needed to prevent debris or pests from entering.
7. Positioning and angling for maximum sun
Orient the solar panel for the best exposure (typically south-facing in the northern hemisphere) and angle it to catch direct sunlight during the hottest part of the day to maximize airflow.
8. Test, measure and tweak
Run the system in sunlight, measure airflow and temperature change, and adjust panel angle, fan sealing, or ducting as needed for improved performance.
Frequently Asked Questions
How much cooling can I expect for a garage?
This setup provides ventilation and can reduce hot stagnant air, but it won't replace air conditioning. Expect improvement in airflow and some temperature reduction near the ventilation path, especially in direct sun.
VIEW FULL ARTICLE →How should I orient the solar panel?
Face the panel toward the sunniest direction for your hemisphere (south in the northern hemisphere, north in the southern) and tilt it to the approximate latitude for best year-round performance or optimize for summer tilt for maximum mid-day output.
VIEW FULL ARTICLE →Related Builds
Parts Used (6)
Supplies power directly from sunlight; choose voltage to match fan. Size depends on desired airflow.
Weatherproof wiring to connect panel to fan; include switch if desired.
Forms the enclosure or ducting to direct airflow.
